| Vacuum-Lift Fluids | Air-Lift Fluids | Air-Lift Solids |
|---|---|---|---|
Suction Hose | TM2500 | TM2500 | TM2500 |
2″ | 800 RPM | 800 RPM | 800 RPM |
3″ | 800 RPM | 800 RPM | 800 RPM |
4″ | 800 RPM | 900 RPM | 1100 RPM |
5″ | 800 RPM | 1000 RPM | 1300 RPM |
6″ | 800 RPM | 1500 RPM |
|

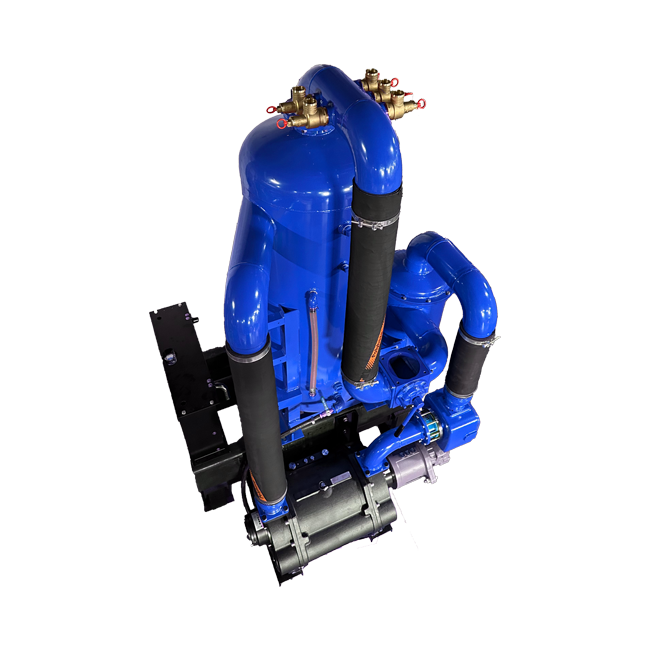

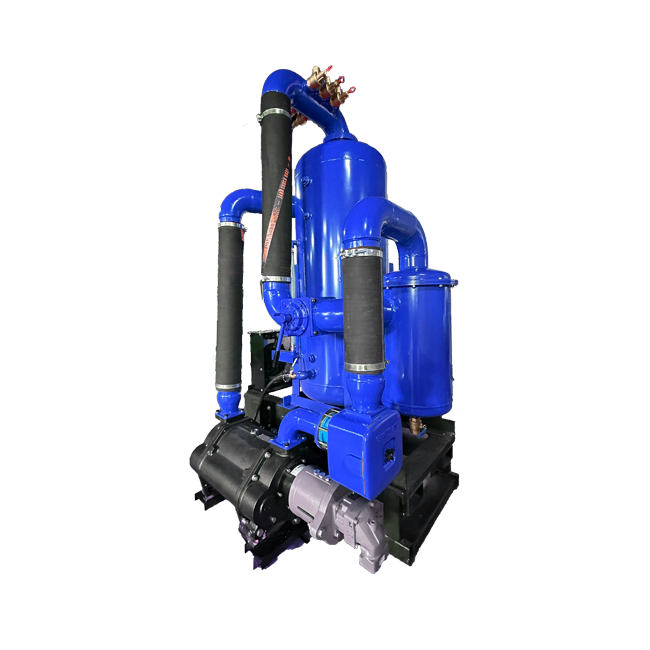

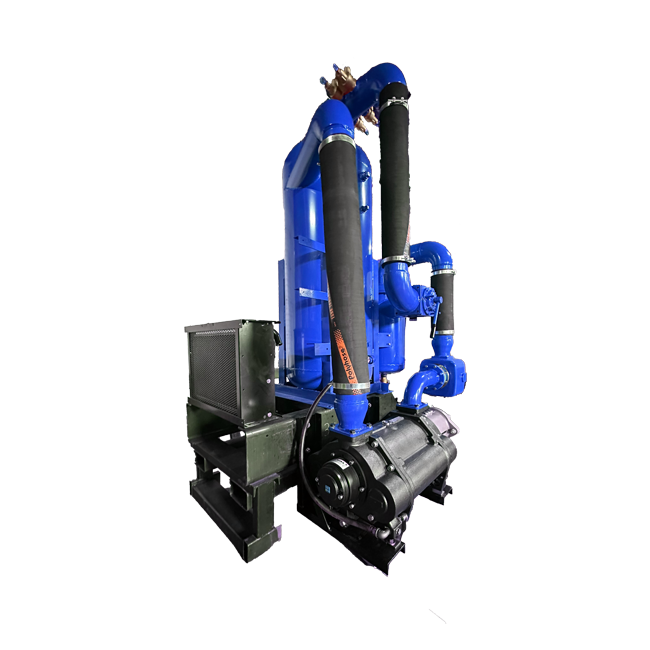

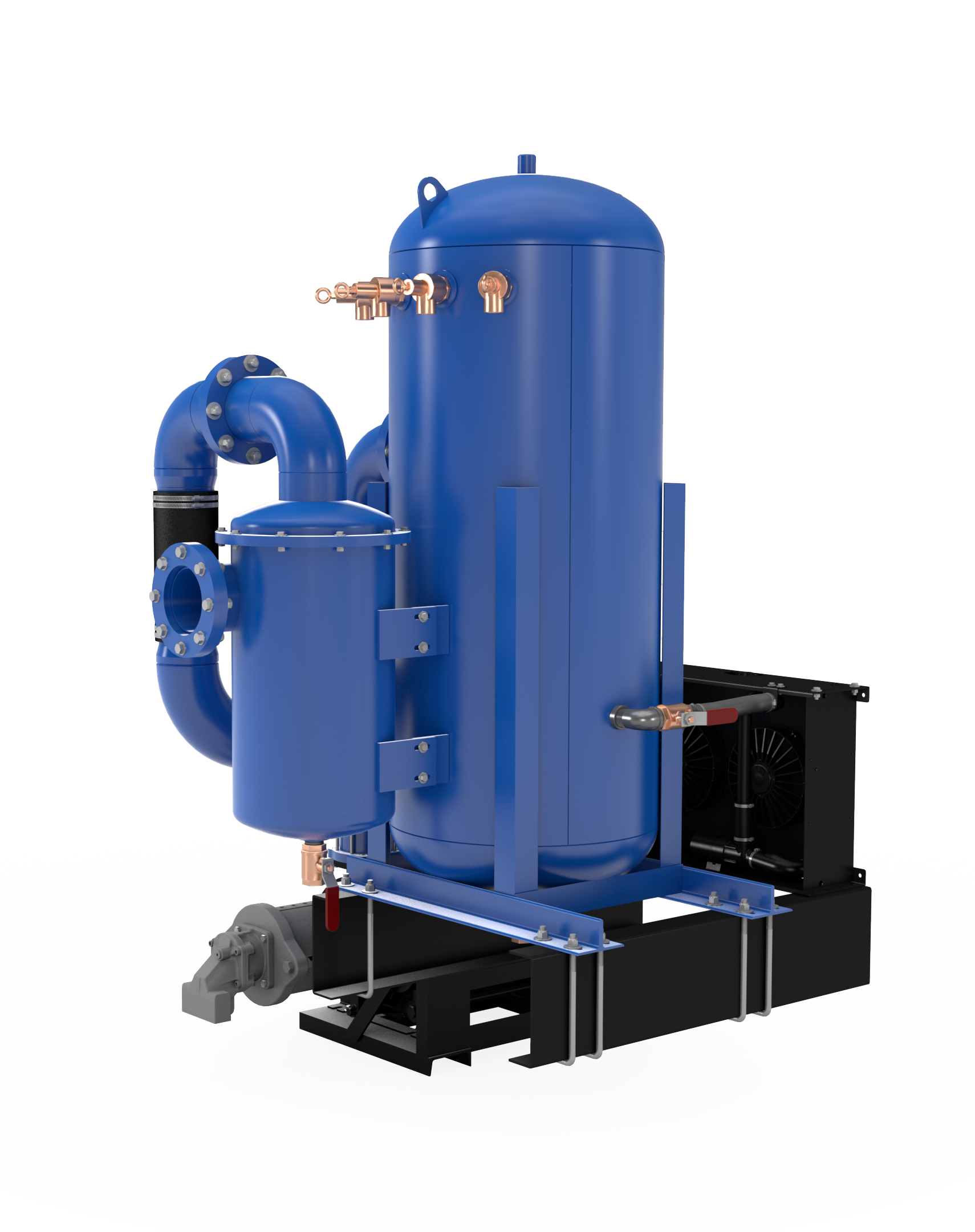

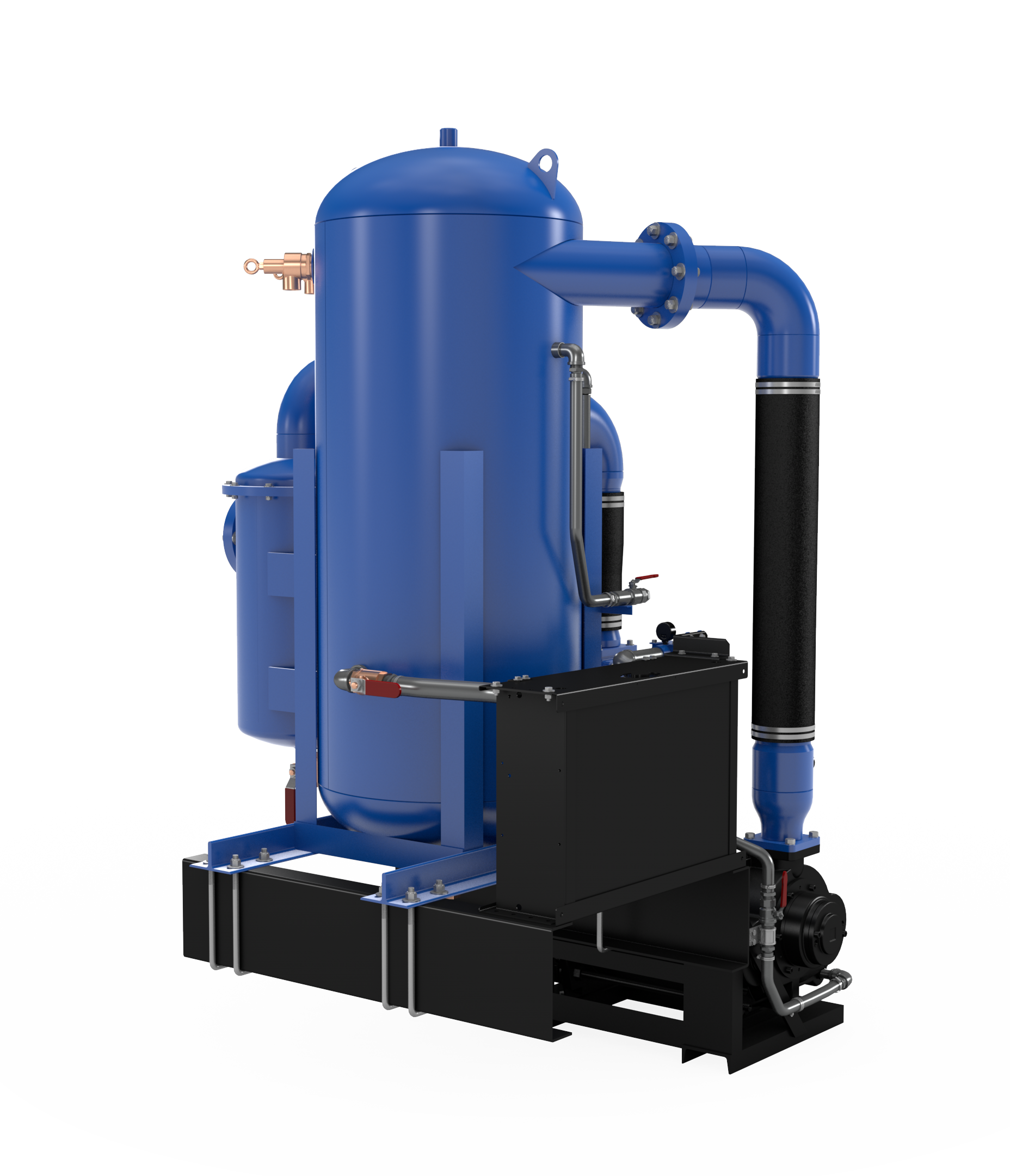

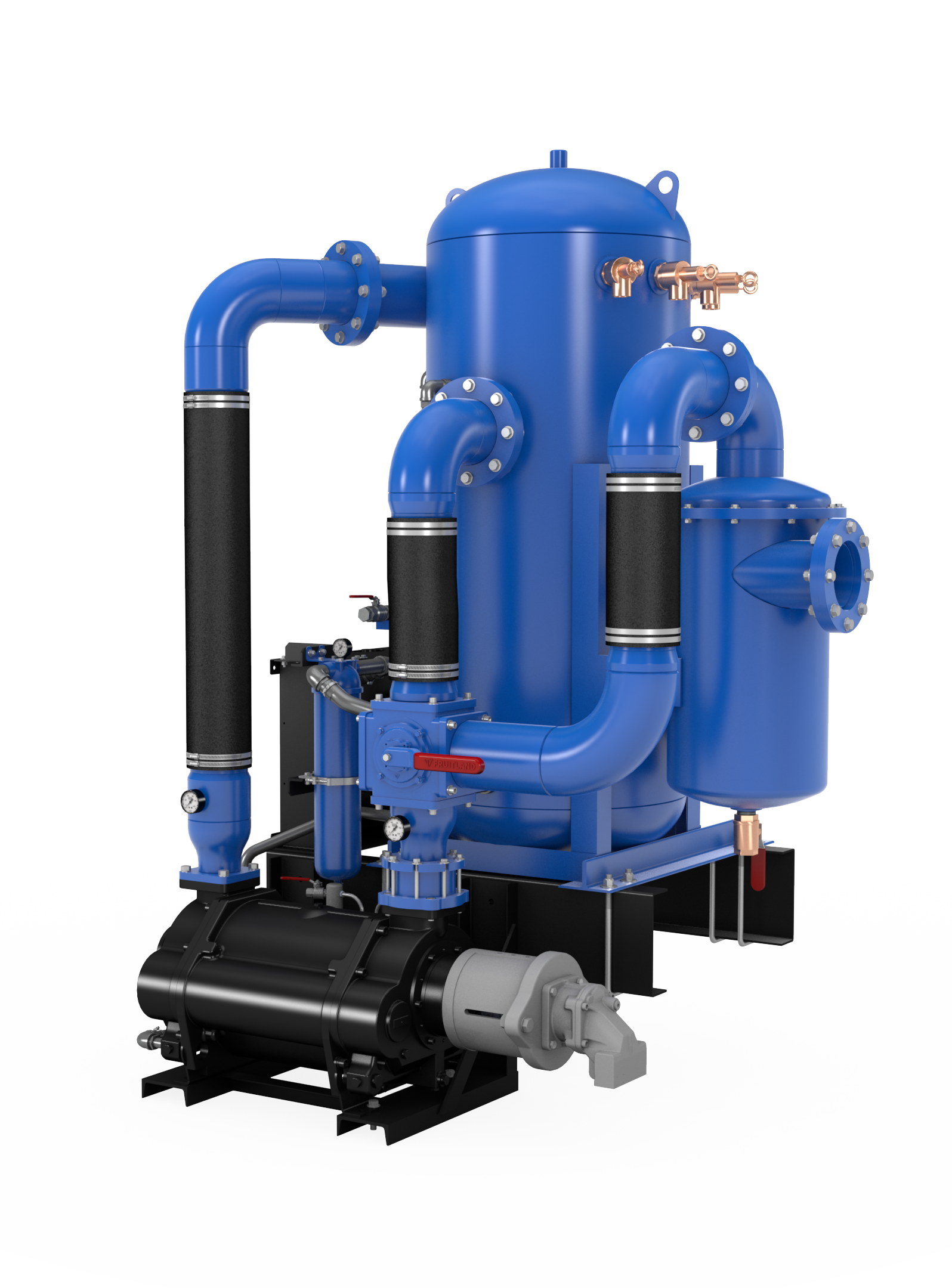

The ELIM Truck Master 2500 package offers the ease of installation of liquid ring technology onto vacuum truck builds with Fruitland's Ready To Rig Eliminator frames and liquid ring vacuum pumps - powered by Samson Pumps.
The liquid ring vacuum pump features:
- Low Noise
- High Resistance to Corrosion
- Zero Emissions
- Zero Risk of Spark
- Low Maintenance
- Integrated Water Systems
| CFM | HP | Lbs *ft |
|---|---|---|---|
Speed | TM2500 | TM2500 | TM2500 |
1500 RPM | 1451 | 87 | 301 |
1400 RPM | 1298 | 76 | 282 |
1300 RPM | 1165 | 65 | 260 |
1200 RPM | 1085 | 61 | 264 |
| CFM | HP | Lbs *ft |
|---|---|---|---|
Speed | TM2500 | TM2500 | TM2500 |
1500 RPM | 818 | 116 | 399 |
1400 RPM | 748 | 102 | 377 |
1300 RPM | 646 | 92 | 368 |
1200 RPM | 584 | 82 | 352 |
14.5 psi
| 50% Vacuum | 70% Vacuum | 80% Vacuum |
|---|---|---|---|
Temperature | TM2500 | TM2500 | TM2500 |
68°F | 5 | 3 | 1 |
86°F | 7 | 4 | 3 |
104°F | 14 | 8 | 6 |
122°F | 25 | 15 | 10 |
131°F | 40 | 24 | 16 |
