RB-DV 65 (912 CFM)

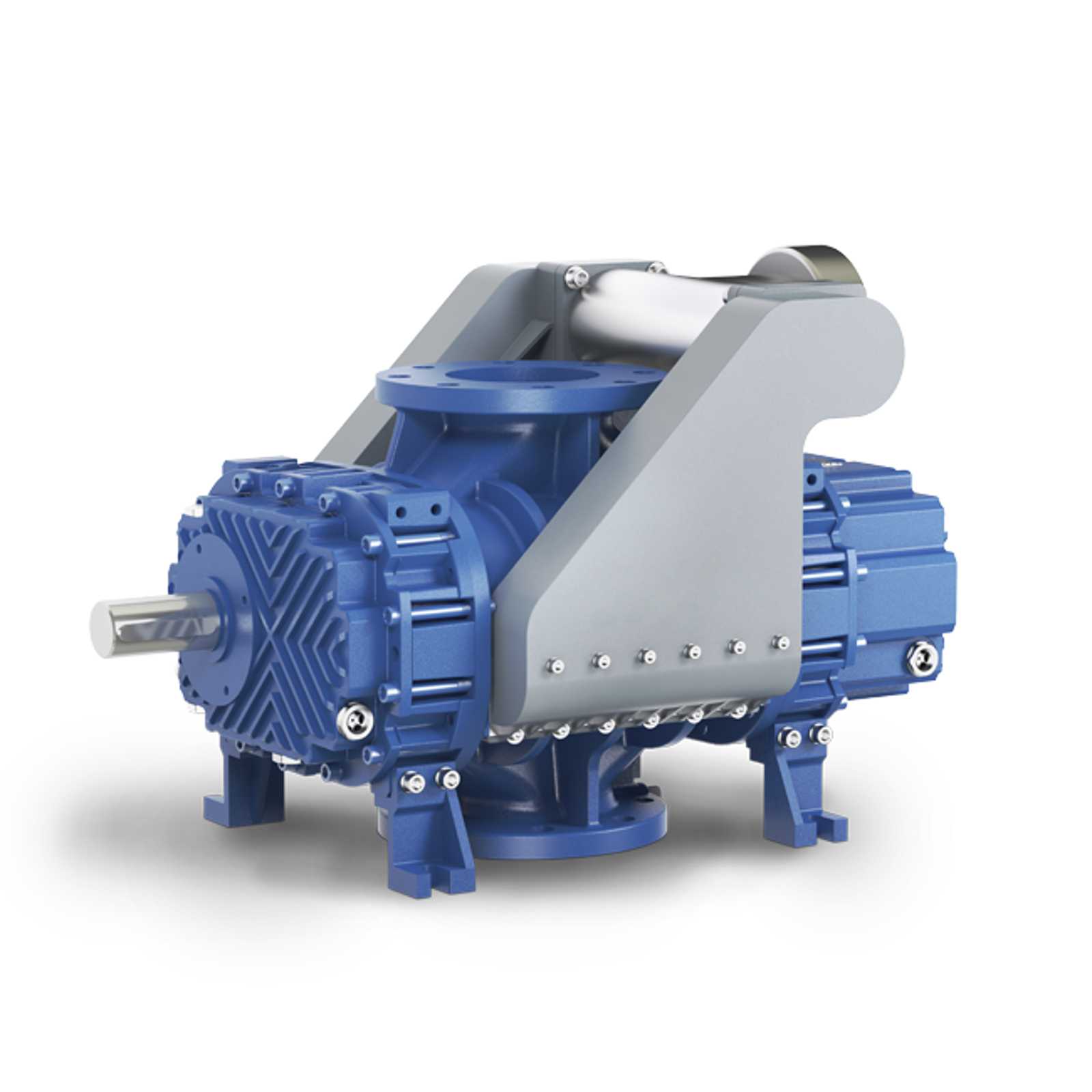

RB-DV 45 & 65 - Product Image

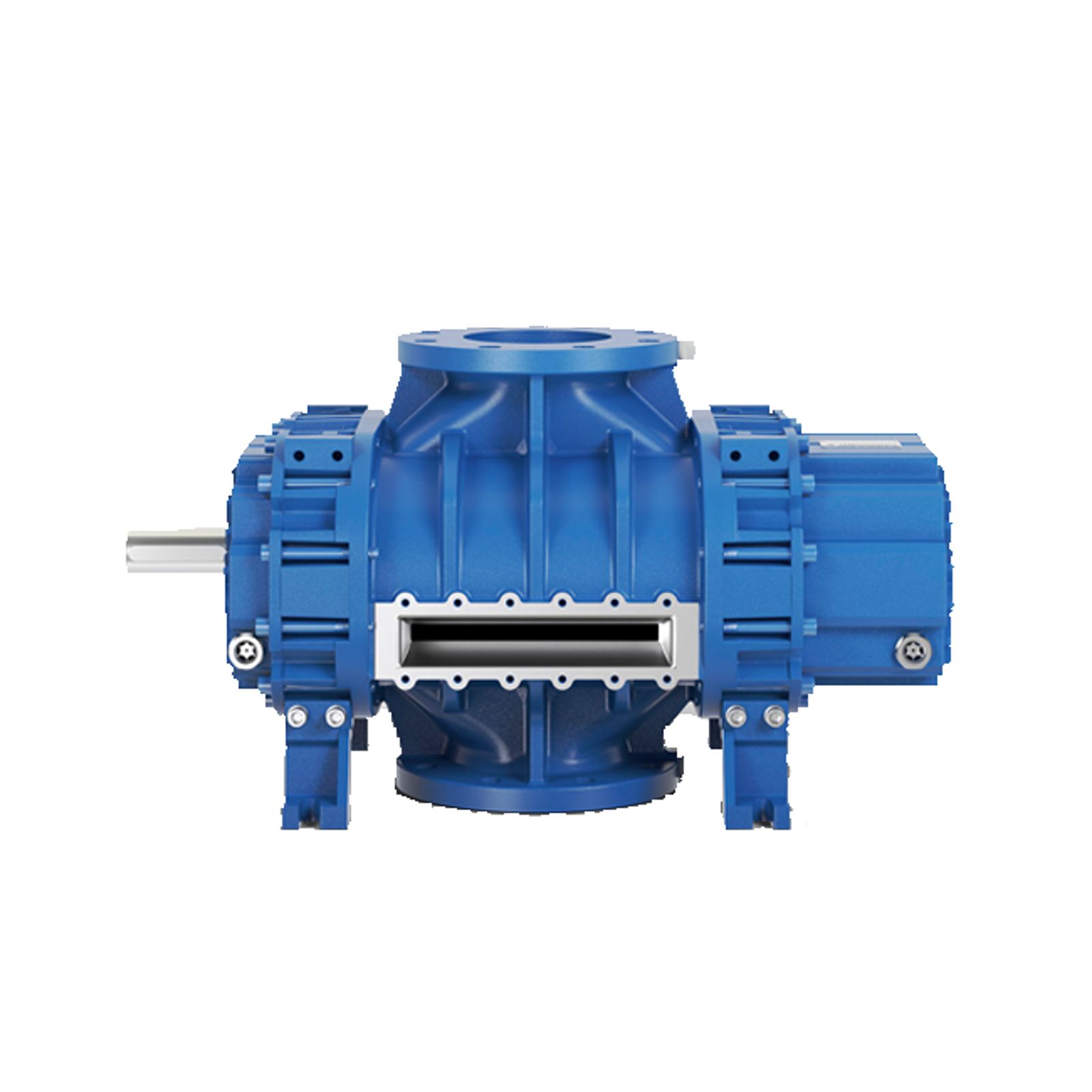

RB-DV45&65 - Product Image

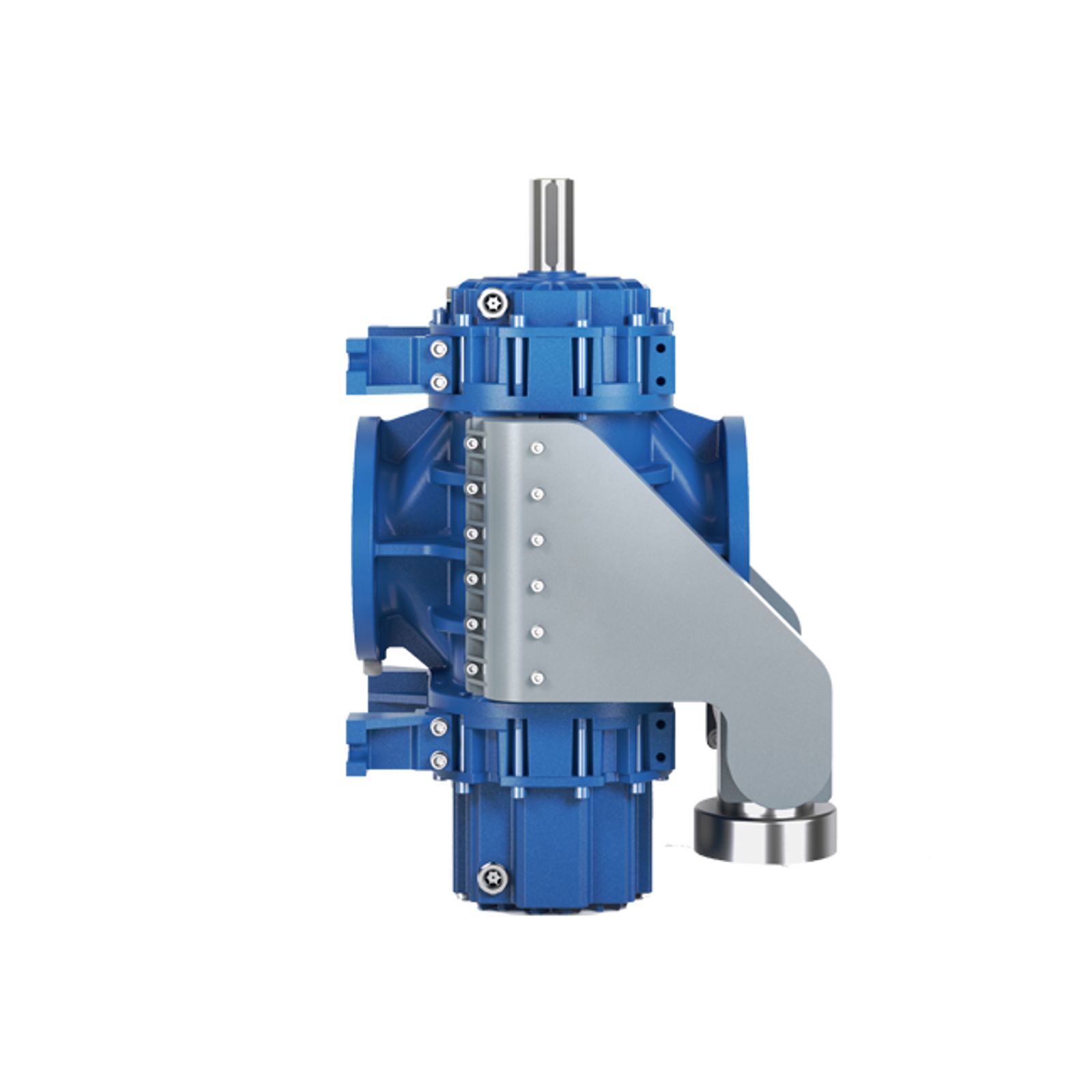

RBDV45&65 - Side View - Product Image

RB-DV 45 & 65 - Product Image

RB-DV45&65 - Product Image

RBDV45&65 - Side View - Product Image

The RB-DV series of rotary lobe blowers are equipped with air injected cooling systems, allowing continuous operation even in the most challenging, heavy duty waste collection applications, in both dry and waste liquid products.

Approximate Free Air Flow - 912 CFM
Maximum Vacuum - 28” Hg
Power Required @ 27” Hg - 49 BHP
Power Required @ 28” Hg - 61 BHP
Power Required @ 10 PSIG - 38 HP
Power Required @ 15 PSIG - 52 HP
Max Pressure - 15 PSIG
Size of Hoses - 4”
Max Input Speed - 4800 RPM
Approximate Net Pump Weight - 353 lbs

RB-DV 65/V

RB-DV 65/V-FI

RB-DV 65/V-SD

RB-DV 65/V-FI-SD

RB-DV 65/H

RB-DV 65/H-FI

RB-DV 65/H-SS

RB-DV 65/H-FI-SS

	Vacuum Blower	Speed RPM	Weight LBS	30% 9 inHg		50% 15 inHg		60% 18 inHg		70% 21 inHg		80% 24 inHg		85% 25.5 inHg		90% 27 inHg		93% 28 inHg
				CFM	BHP	CFM	BHP	CFM	BHP	CFM	BHP	CFM	BHP	CFM	BHP	CFM	BHP	CFM	BHP
Model	65	2000	352.7	312	7.8	272	12.6	224	14.7	176	17.4	-	-	-	-	-	-	-	-
		2500		405	10.1	371	16.1	318	18.8	265	22.1	200	25.2	-	-	-	-	-	-
		3000		500	12.7	465	20	412	23.5	359	26.8	300	30.8	176	32.6	-	-	-	-
		3500		595	15.5	559	24	506	28.1	453	32.8	394	36.2	282	38.9	-	-	-	-
CFM	912	4000		691	18.8	647	28.4	618	33.5	547	37.5	494	42.9	371	45.6	-	48.9	-	-
		4500		786	22.4	735	32.8	694	38.7	647	44.1	582	49.6	459	52.3	-	54.9	-	-
		4800		843	24.8	794	36.3	735	42.1	706	47.6	647	53.6	529	56.5	-	59.6	Blank Off	61.6
