| Vacuum-Lift Fluids | Air-Lift Fluids | Air-Lift Solids |
|---|---|---|---|
Suction Hose | TM3 | TM3 | TM3 |
2″ | 1000 RPM | 1000 RPM | 1000 RPM |
3″ | 1000 RPM | 1100 RPM | 1600 RPM |

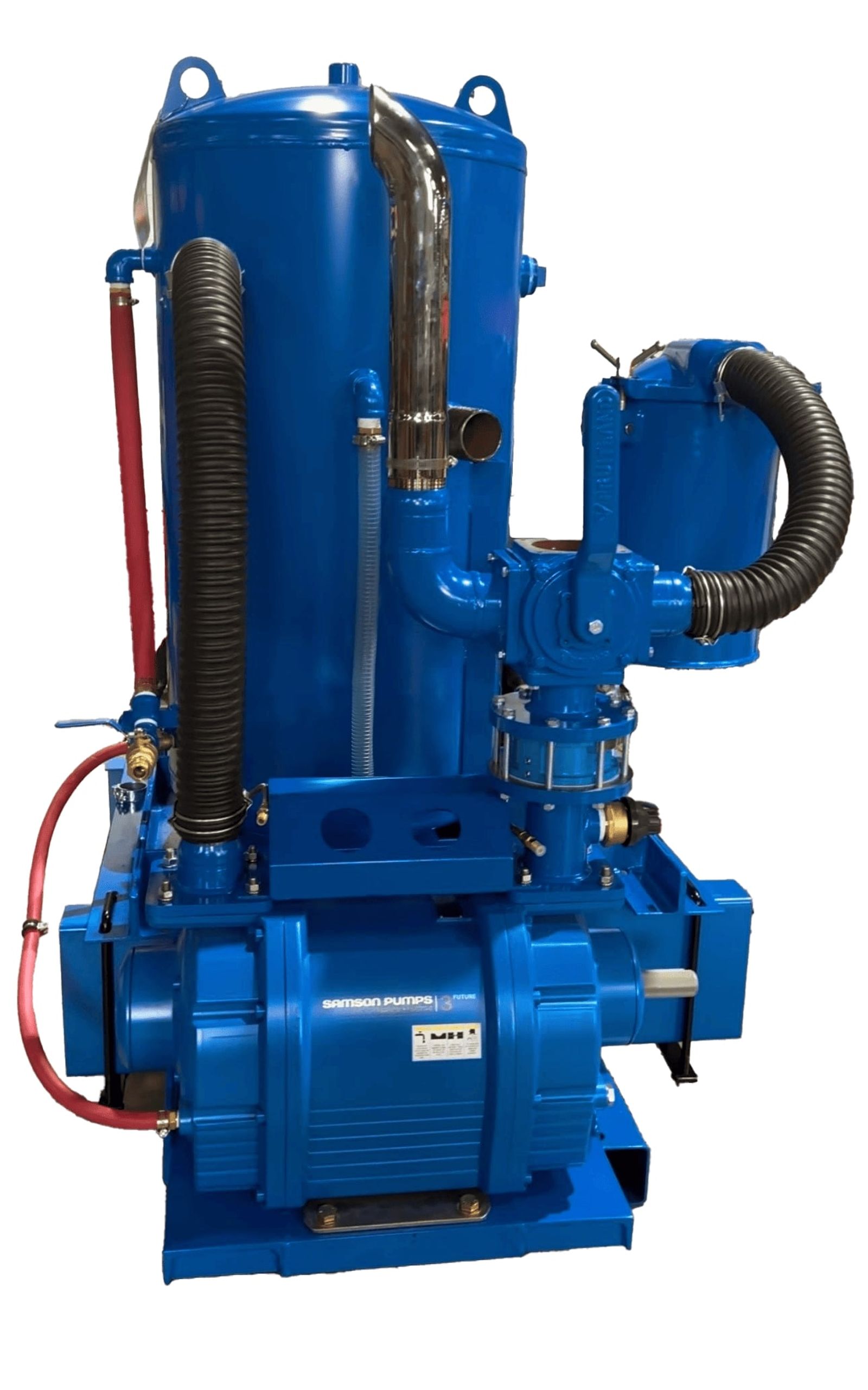

The ELIM Truck Master 3 package offers the ease of installation of liquid ring technology onto vacuum truck builds with Fruitland's Ready To Rig Eliminator frames and liquid ring vacuum pumps - powered by Samson Pumps.
The liquid ring vacuum pump features:
- Low Noise
- High Resistance to Corrosion
- Zero Emissions
- Zero Risk of Spark
- Low Maintenance
- Integrated Water Systems
| CFM | HP | Lbs *ft |
|---|---|---|---|
Speed | TM3 | TM3 | TM3 |
1800 RPM | 483 | 36 | 106 |
1700 RPM | 454 | 34 | 104 |
1600 RPM | 430 | 30 | 97 |
1500 RPM | 395 | 27 | 94 |
1400 RPM | 371 | 23 | 86 |
1300 RPM | 330 | 20 | 81 |
1200 RPM | 297 | 19 | 82 |
| 50% Vacuum | 70% Vacuum | 80% Vacuum |
|---|---|---|---|
Temperature | TM3 | TM3 | TM3 |
68°F | 0.3 | 0.2 | 0.1 |
86°F | 0.5 | 0.3 | 0.2 |
104°F | 0.8 | 0.5 | 0.3 |
122°F | 1.4 | 0.8 | 0.6 |
131°F | 1.8 | 1.1 | 0.7 |
